PixIR

Sale!

PixIR

Original price was: 2,400.00 €.Current price is: 1,600.00 €.

Price without VAT

Main Features

  • Wide spectral range 400 ­- 1700 nm
  • Lightweight and ergonomic design
  • High contrast and sensitivity
  • Excellent image quality
  • Brightness adjustment
  • Hand-held
  • Compatible with C-mount lenses
  • Pulsed and CW light detection
  • Auto power-off
  • 9+ hours of operation time


2 Years warranty

SKU: PixIR Categories: , , ,

Description

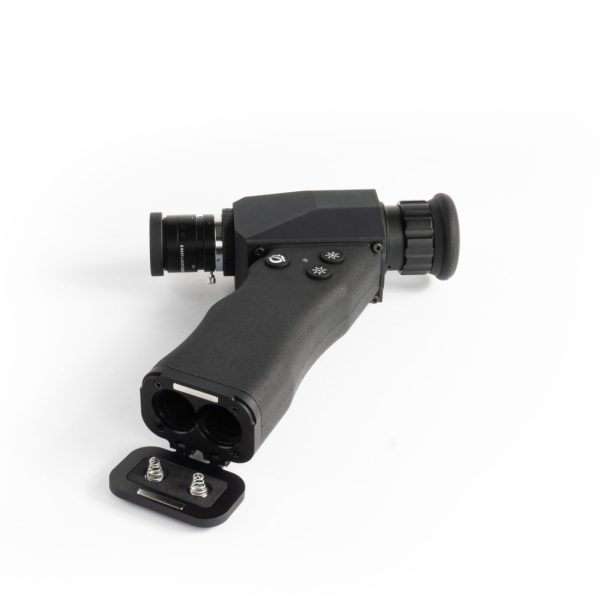

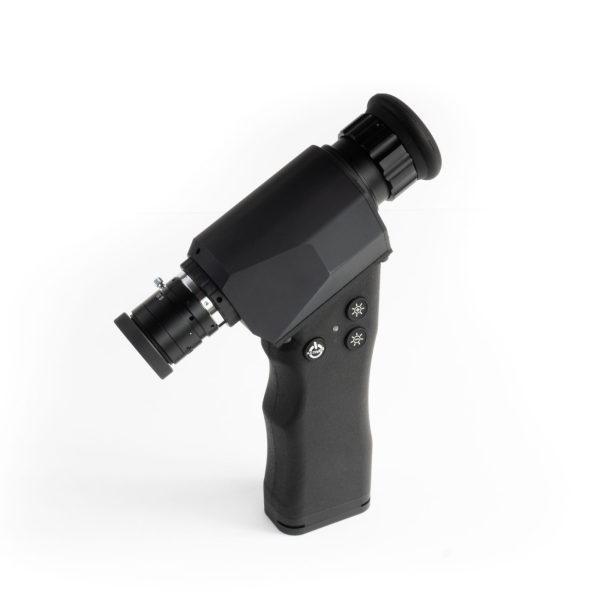

The PixIR HandHeld viewer captures radiation within the 400–1900 nm spectral range, enabling detailed observation, registration, and recording in the near-infrared zone. It is ideal for infrared microscopy, luminescence studies, document analysis, forensics, art restoration (infrared reflectography), and instrument alignment applications.

Typical Applications

  • Positioning and alignment of Nd:YAG Yb:YAG, Yb:KGW,Ti:Sapphire and other IR lasers
  • Identification of stray IR reflections
  • Observation of GaAs laser diodes, IR LED‘s, dye and other IR-sources
  • Forensic analysis on inks, pigments

Downloads:
“Datasheet”

Technical information:

MODEL (1X) MODEL (2X)
Spectral sensitivity 400-1700 nm
Field of view 38° 19°
Magnification 1X 2X
Focus 0.1m to ∞ 0.5m (o.15m)* to ∞
Objective lens F1.3/8 mm F1.4/16 mm
Resolution (center) 30 Lp/mm
Adjustable iris Included
Distortion of image 0.5%
2x 18650 batteries life (fully charged) continuous 11h
Weight without batteries and lenses 0.36 kg
Weight with batteries 0.45 kg
Dimensions 153 x 175 x 51 mm

Standard kit includes:

  • Handheld Infrared viewer PixIR;
  • lens 1X or 2X;
  • Macro ring;
  • IR filter;
  • handle;
  • battery and charger;
  • case.

A number of accessories are available to enhance the capabilities of the viewer and to make them more
suitable for your application.

  • Neutral density filter to lens 1X (3-5%@1064nm)
  • Neutral density filter to lens 2X (3-5%@1064nm)
  • Microscope adapter
  • Lens 2X (F1.8/50mm)
  • Lens 1X F(1.4/25mm)
  • Macro ring
  • C-mount ring for any C-mount type lenses
  • Tripod

Available accessories…
