UV-NIR Laser beam visualizers

IR beam visualizer
IR beam visualizerirv-graph

For more information fill inquiry form or contact us by email

Detects wavelenghts from UV to NIR
Works with CW and pulsed laser light
Requires no charging
High sensitivity to laser radiation – 0.1 mW/mm2
Damage threshold for pulsed laser – 1J/cm2, 10ns



from € 75,00

SKU: 9812 Categories: ,

Product Description

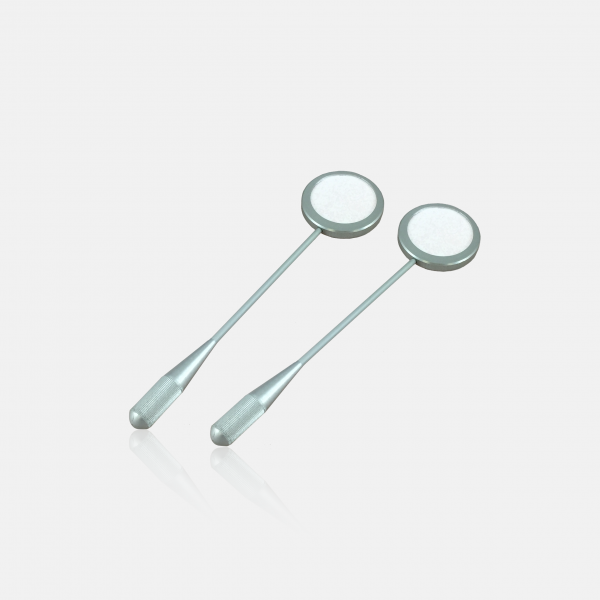

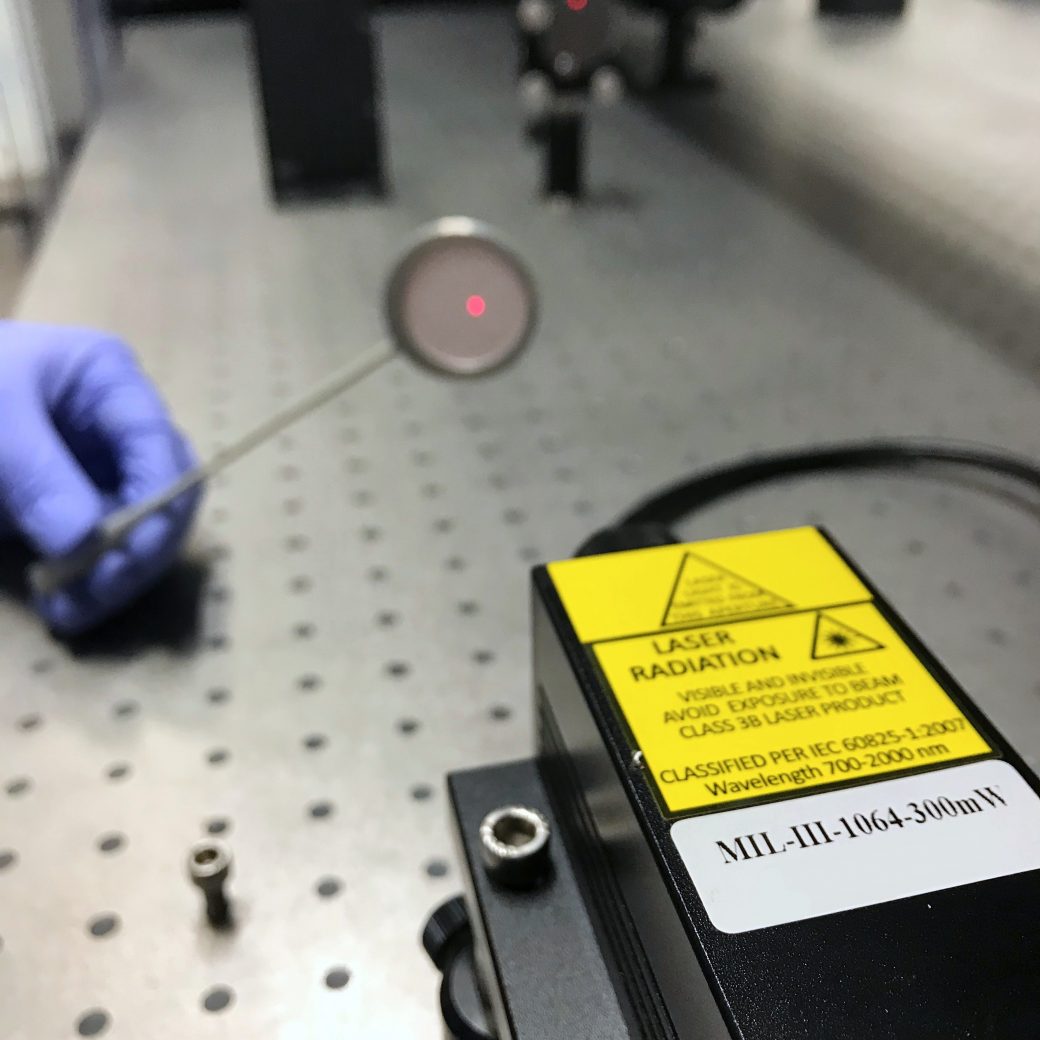

Laser beam visualizers are designed to detect UV and IR both CW and pulsed laser light radiation.

These visualizers are fabricated from aluminium with a organic polycrystal photosensitive region, which enables easy location of UV-VIS-NIR light beams and focal points. As it is not necessary to charge the active region both CW and pulsed laser light will be detected even in darkened room conditions.



Technical information

Product code

IRV-R-1

IRV-G-1

IRV-GTOR-1

IRV-RG-2

Price (ex. VAT)

€85,00

€75,00

€85,00

€129,00

Threshold sensitivity W/cm2
(mW/mm2)

0.01
(0.1)

0.02
(0.2)

0.1
(1.0)

0.01 / 0.02
(0.1) / (0.2)

Spectral range, nm

190-1090 + 1470-1600

880 – 1070

900 – 1350

190-1090 + 1470-1600
/ 880-1070

Emission

Red

Green

Green to Red

Red / Green

Active sides

one

one

one

two

Laser beam size, Ø mm

35

35

35

35
